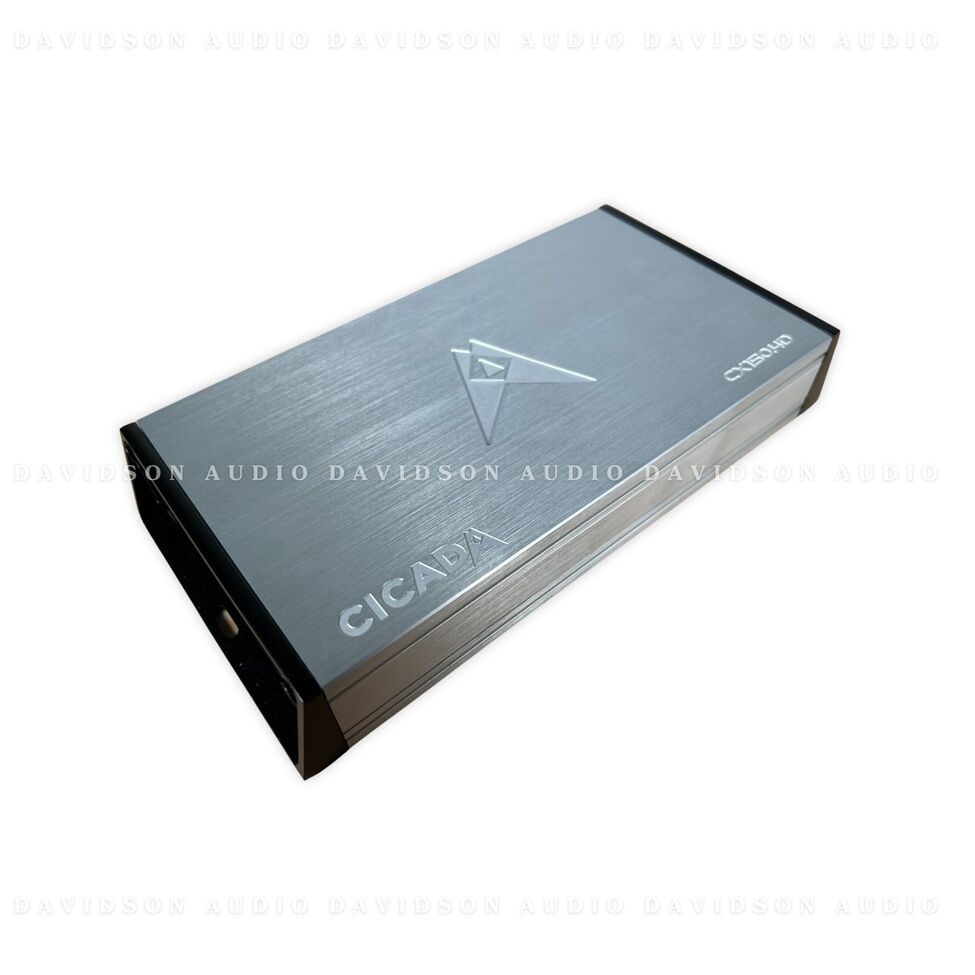

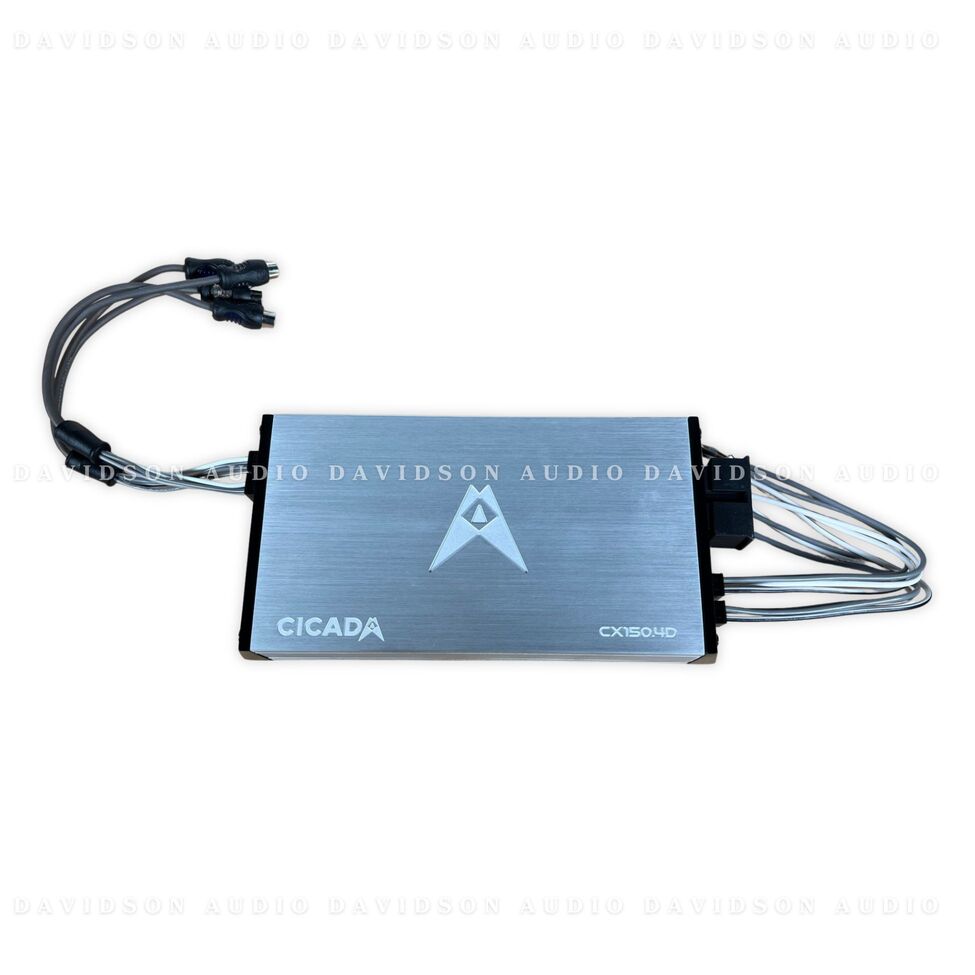

Cicada Audio CX150.4D Amplifier
Cicada Audio CX150.4D Amplifier 4 Channel
Cicada Audio 150.4D Amplifier 4 channel
Cicada Audio 150.4D Amplifier 4 channel
Cicada Audio 150.4D Amplifier 4 channel
Cicada Audio 150.4D Amplifier 4 channel

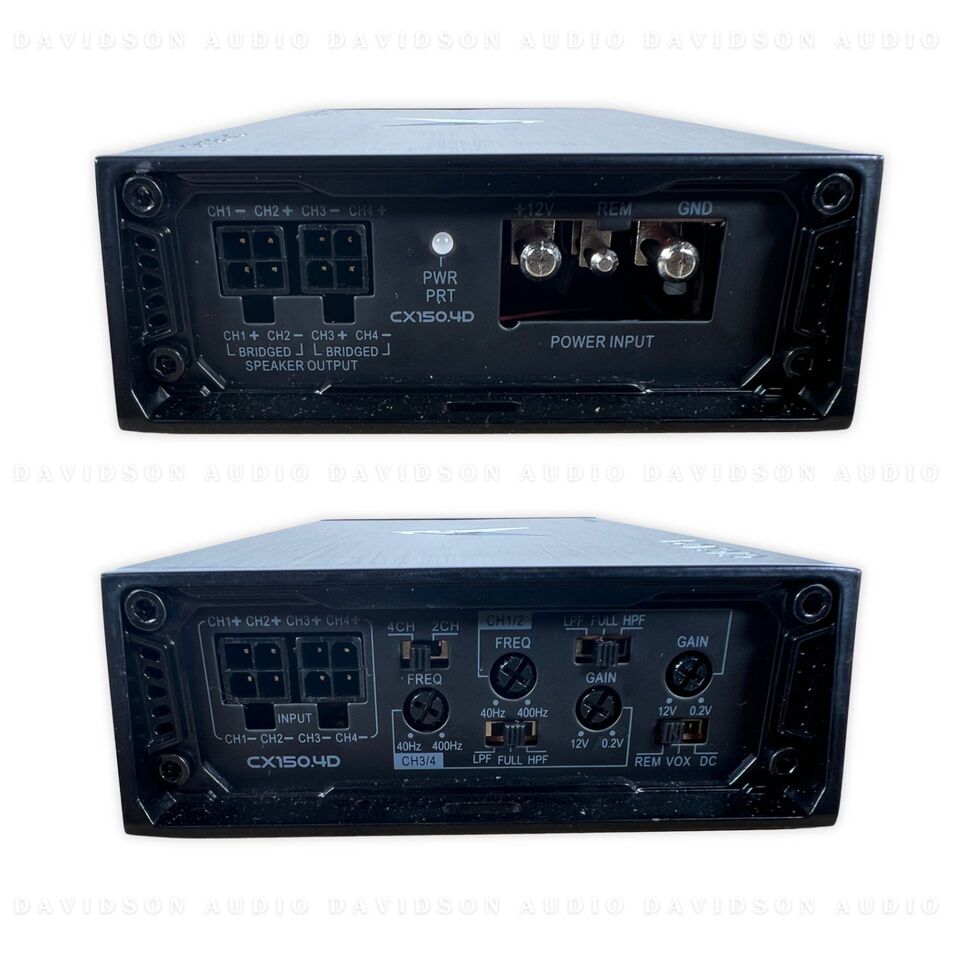

Control Panel Cicada Audio 150.4D Amplifier 4 channel
Cicada Audio 150.4D Amplifier 4 channel in box

Cicada Audio 150.4D Amplifier

$499.99 USD
Cicada Audio CX150.4D  Amplifier
  • Quantity: Single
  • Power Rating: 4 Channel & 2 Channel Bridged
  • 4 X 70 WRMS into 4 ohms @ 12.5 Vdc
  • 4 X 92 WRMS into 4 ohms @ 14.4 Vdc
  • 4 X 115 WRMS into 2 ohms @ 12.5 Vdc
  • 4 X 152 WRMS into 2 ohms @ 14.4 Vdc
  • 2 X 218 WRMS into 4 ohms @ 12.5 Vdc
  • 2 X 302 WRMS into 4 ohms @ 14.4 Vdc
  • Frequency Response: 20-20,000 +/- 3dB THD < 0.5%
  • Operating Voltage: 8V – 16V
  • Current Draw (Music): 40 A
  • Current Draw (Max): 80 A
  • Recommended Fuse (Music): 40 A
  • Total Efficiency: 79%
  • Damping Factor: 200
  • SNR: 91dB
  • Crossover LPF/FULL/HPF: 40 TO 400Hz
  • Slope: 12dB per octave
  • Gain: 0.2V – 12 Vac
  • Turn-On Configuration: REM/VOX/DC
  • Length: 7.0” / 177.8mm
  • Width: 4.0” / 101.6mm
  • Height: 1.375" / 34.9mm
  • Cicada Audio CX150.4D Amplifier Owners Manual
